Adding variable tiling width ratio and gaps to XFCE xfwm4

  2023-02-17      394 words, 2 minutes

• xfce
• xfwm4
• tile
• gaps

After a lot of desktop environment and window manager hoping, I’ve settle down with XFCE. I find it customizable, pretty and fast. But after all my hoping, I’ve always missed a couple of things learned from the tiling window manager world: resizable master area and gaps.

Here a couple of patches I wrote to enable those two features for Xfwm4.

For a long time, I’ve used xdotools to tile the windows width ratio and insert gaps. The script was called using keystrokes. But I couldn’t find a way to use the “snap” feature of XFCE. Patching the sources provides the usage of mouse to manage the windows.

Because XFCE is available as version 4.16 on OpenBSD 7.2-STABLE, I started patching that particular Xfwm4 version. In OpenBSD 7.2-CURRENT, XFCE 4.18 was made available. Patches for both version are available here.

The 4.18 patches have been submitted to the XFCE project . Hopefully, they will make their way to the upstream code.

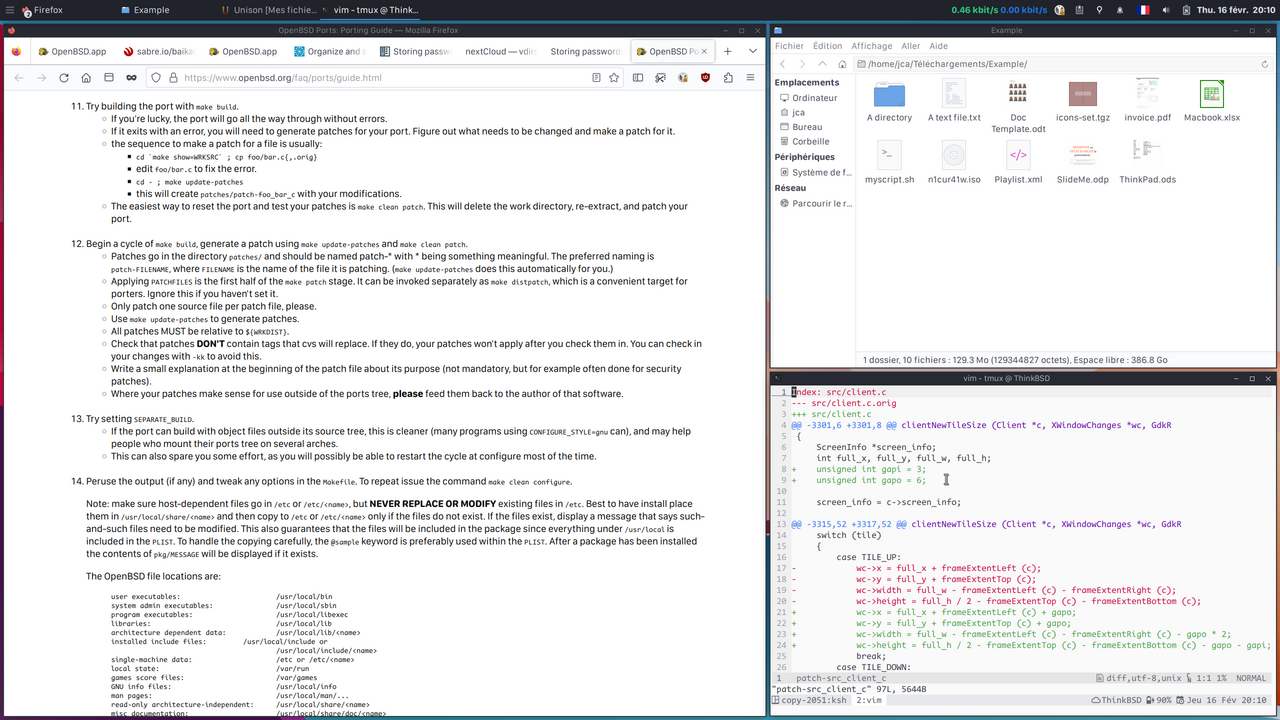

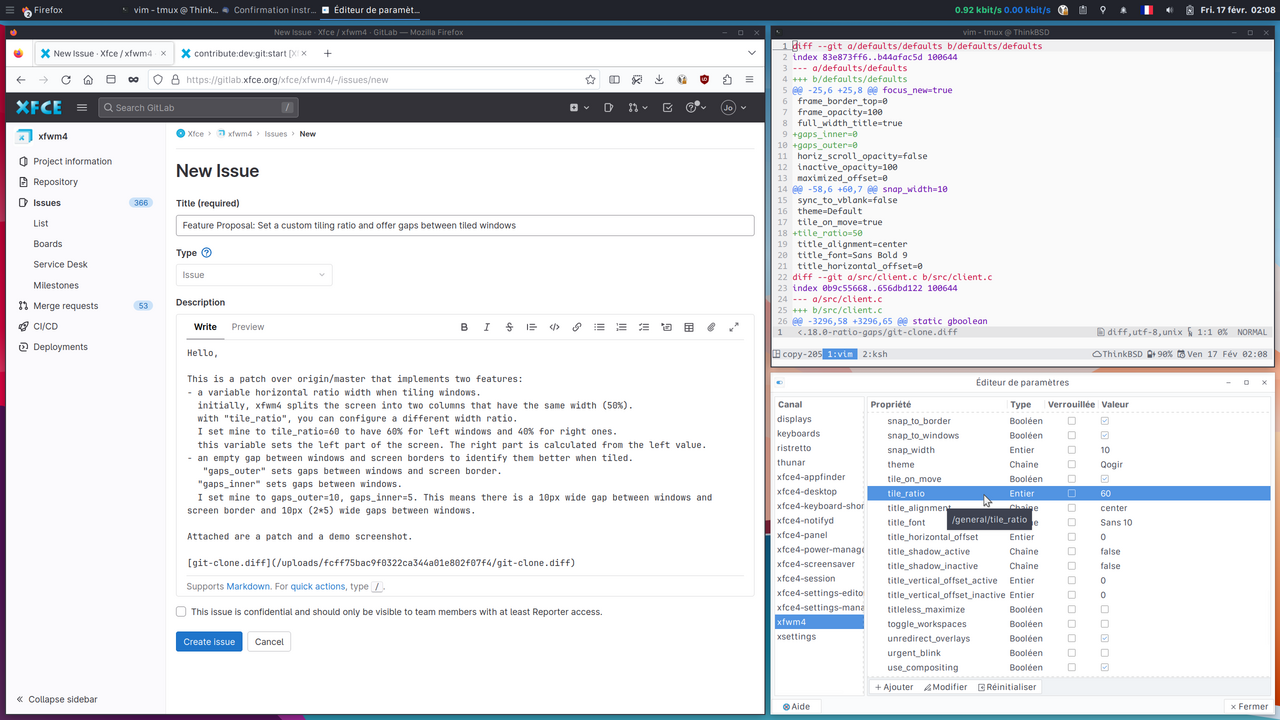

Here what the applied patches look like from the user perspective.

Patches for Xfwm4 4.16 can be downloaded here .

Patches for Xfwm4 4.18 can be downloaded here .

As I built them on OpenBSD, patches are expected to be installed in /usr/ports/x11/xfce4/xfwm4/patches. But they can probably be applied straight away from Xfwm4 source directory if you’re using another OS.

Those patches will expose 3 new variables in the xfce4-settings-editor application. In the xfwm4 section, you’ll find tile_ratio, gaps_inner and gaps_outer.

• tile_ratio sets the percentage of screen width that the left tiled window(s) will use. The default value of 50 sets the width to 50% of the screen width ; that’s what Xfwm4 does by default. I set it to 60 so that windows are tiled using a 60/40 ratio. If it is set to 30, the left window(s) will be tiled using a third of the screen width ; the right window(s) will be tiled using two thirds of the screen width.
• gaps_outer sets the gap space between desktop edges and window(s). I set it to 10 to have a 10px gap. The horizontal and vertical gaps have the same width and height.
• gaps_inner sets the gap space between windows. I set it to 5 to have a global gap of 10px between windows. The horizontal and vertical gaps have the same height and width.

Hope it helps. See you on r/unixporn :D
