Monitor OpenBSD using Collectd and Facette

  2017-10-31      113 words, 1 minutes

• collectd
• facette
• metrology
• monitoring
• openbsd
• rrd

Imil wrote as nice 5 minutes collectd + facette setup  article using NetBSD. After a quick look in the ports, I saw it was possible to monitor OpenBSD using Collectd and Facette too. Hang tight, it only takes seconds to achieve.

Grab the metrics using Collectd

# pkg_add collectd-rrdtool collectd-mysql

# vi /etc/collectd.conf
(...)
BaseDir "/var/collectd"
PIDFile "/var/collectd/collectd.pid"
TypesDB "/usr/local/share/collectd/types.db"

# rcctl enable collectd
# rcctl start collectd

Render the metrics using Facette

# pkg_add facette

# vi /etc/facette/facette.json
{
  "bind": "127.0.0.1:12003",
(...)

# vi /etc/facette/providers/collectd.json
{
  "connector": {
    "type": "rrd",
    "path": "/var/collectd/rrd",
    "pattern": "(?P<source>[^/]+)/(?P<metric>.+).rrd"
  },
(...)

# rcctl enable facette
# rcctl start facette

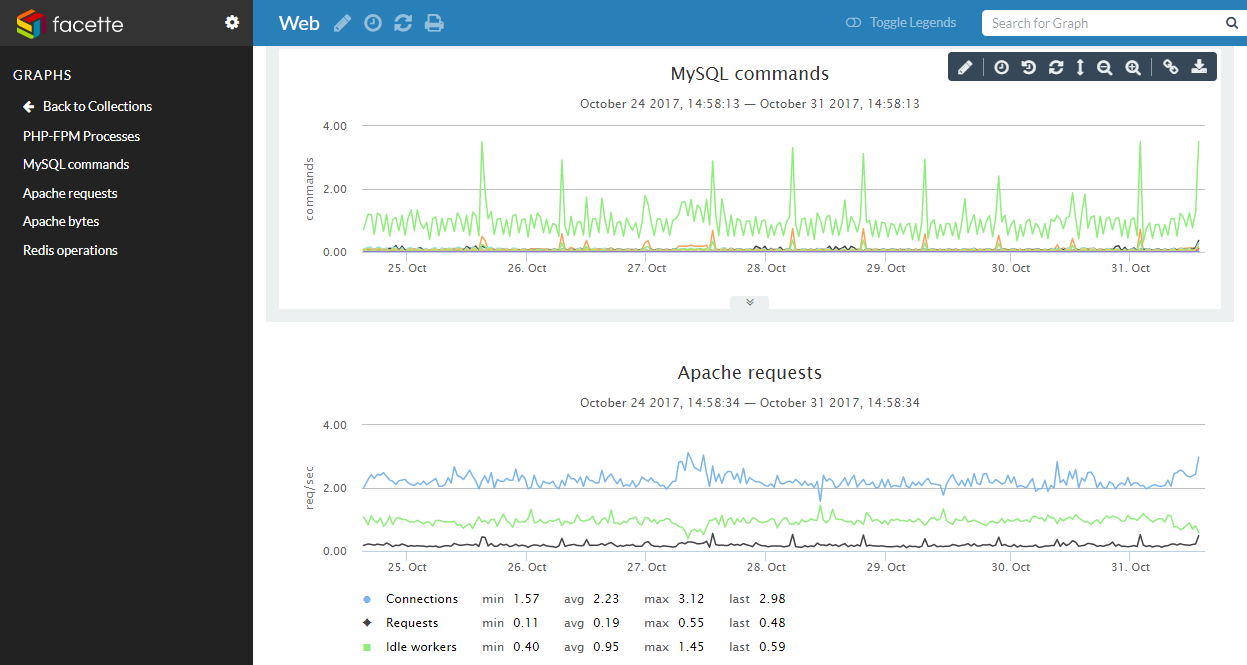

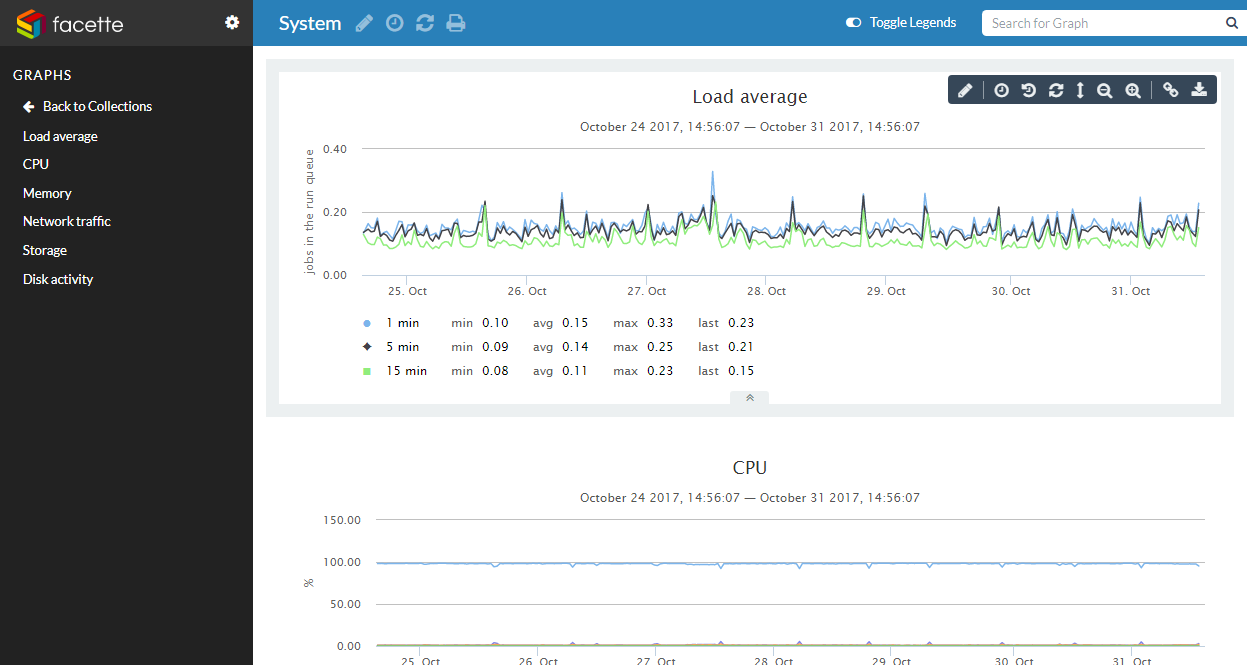

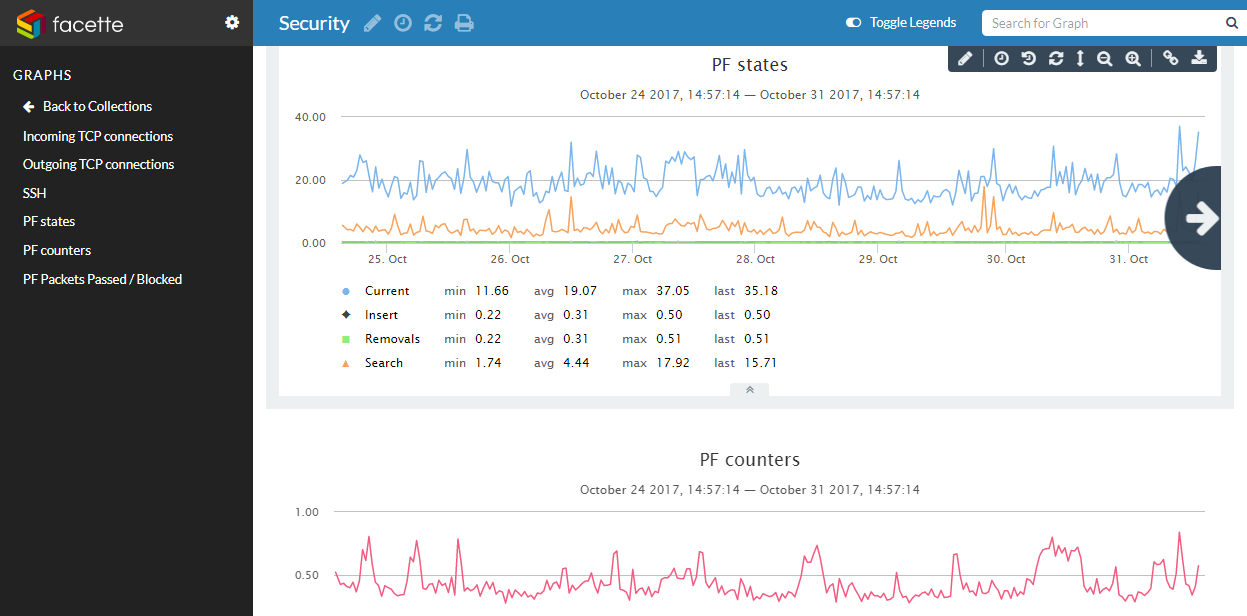

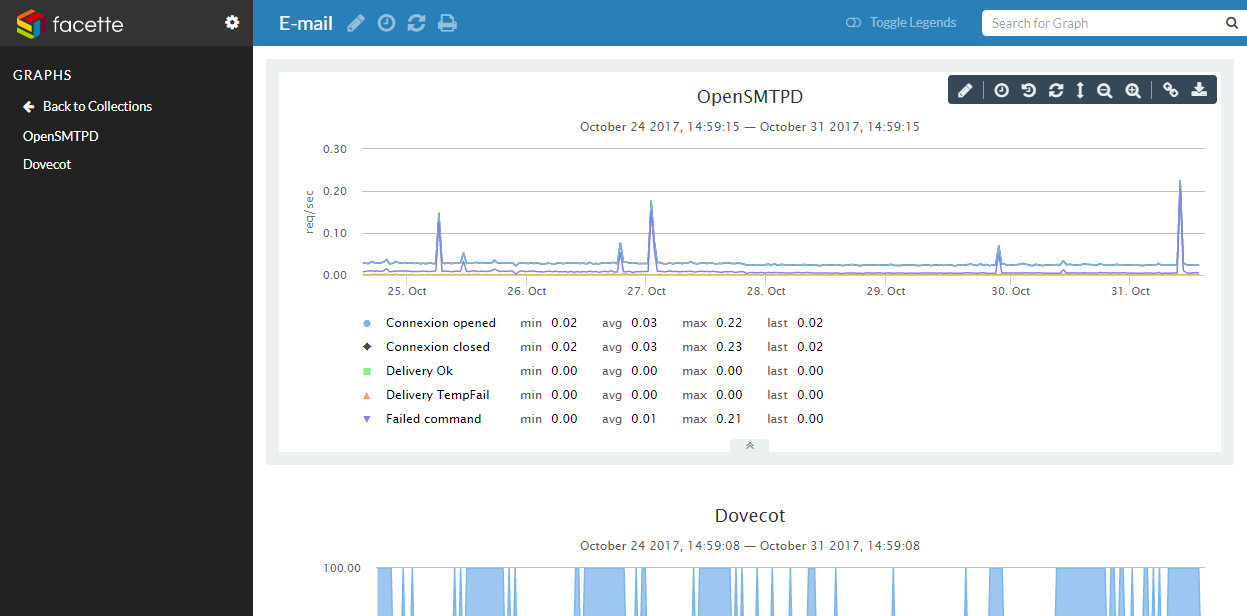

Wait a few minutes and browse the GUI.
