A geek look into QNAP TS-453mini with 16GB RAM
1396 words, 7 minutes
I bought a QNAP TS-453mini in order to replace the good old Synology DS409slim. Not that it doesn’t work. It’s just that the 4x 1TB disks are nearly full. I was desperately waiting for bigger 2.5" capacity but this doesn’t seem to happen. Also, since I moved into a new place, I planned to also reduce the number of plugged)in stuff. Hence, the fanless OpenBSD server would either go in the Cloud or… on the QNAP virtualization software.
After a bit of testing, I don’t like QTS 4.2 that much. Seem so complicated, compared to DSM. HybridDesk Station is also nice (Kodi displayed on TV using HDMI). But this looks like Android to me : a pile of Linux/GNU stuff mixed-up in a not so much friendly-way. So, as I’m a BSD-guy, I plan to replace QTS with some {Free,Net}BSD release. But before that, I wanted to have an inside look at the original system as I had difficulties finding informations on the Internet.

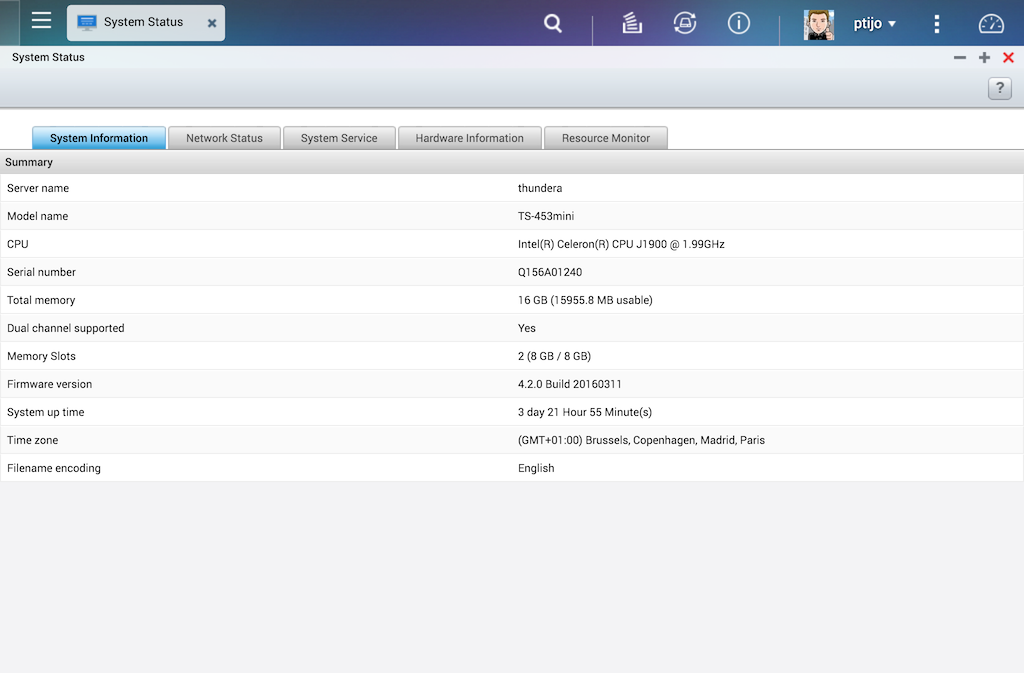

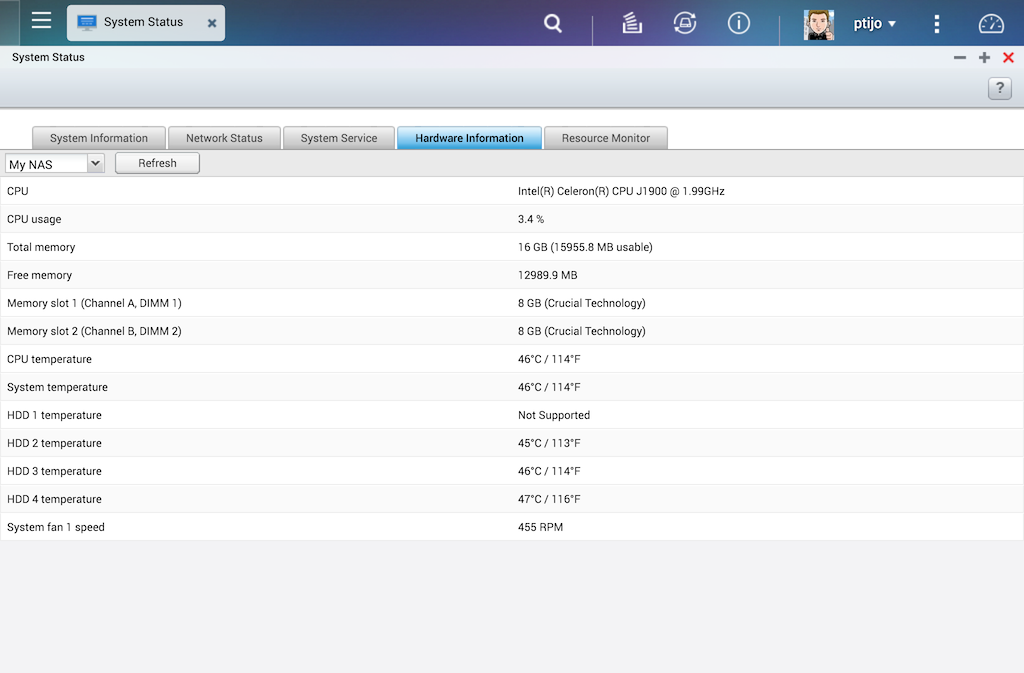

The first thing to advertise is than TS-453mini does support 16GB of RAM ! Yes ‘mam. In my case, I used two CRUCIAL-CT102464BF160B (SO-DIMM DDR3 Crucial, 8 Go, 1600 MHz, CAS 11). QTS works well and recognizes the whole set of memory.
Here’s the dmidecode output QNAP TS-453mini dmidecode

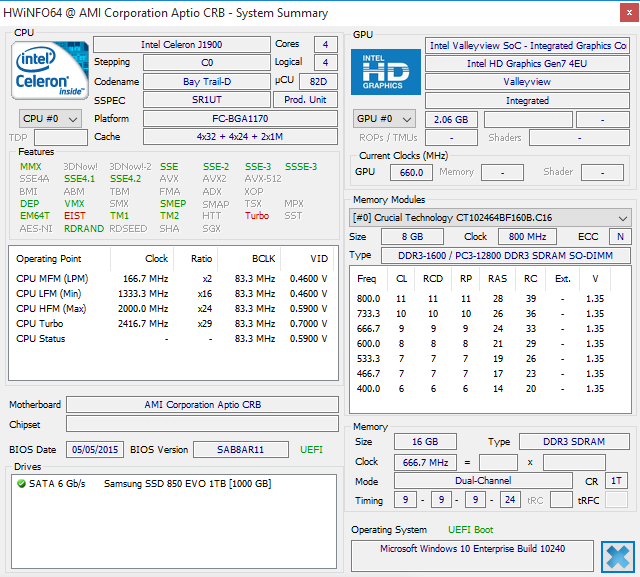

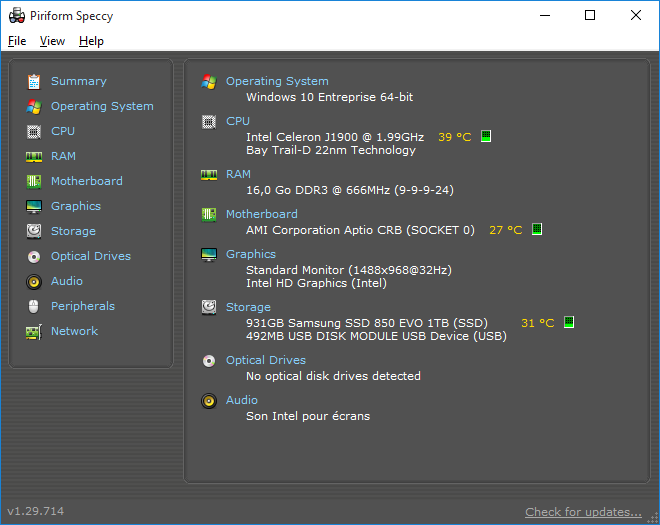

Installing Windows, you can get the following informations :
The other thing I was wondering is what RAID system that box used. My installation has 1 SSD drive and 3 SATA drives. The original idea was to have virtual machines on the SSD and all the data on the SATA drives. The RAID thing is done via Software RAID (mdadm):
# cat /proc/mdstat
Personalities : [linear] [raid0] [raid1] [raid10] [raid6] [raid5] [raid4] [multipath]
md2 : active raid5 sdc3[2] sdb3[0] sda3[1]
11701135232 blocks super 1.0 level 5, 64k chunk, algorithm 2 [3/3] [UUU]
md1 : active raid1 sdd3[0]
966807616 blocks super 1.0 [1/1] [U]
md256 : active raid1 sdc2[3](S) sda2[2](S) sdb2[1] sdd2[0]
530112 blocks super 1.0 [2/2] [UU]
bitmap: 0/1 pages [0KB], 65536KB chunk
md13 : active raid1 sdc4[24] sdd4[0] sda4[3] sdb4[2]
458880 blocks super 1.0 [24/4] [UUUU____________________]
bitmap: 1/1 pages [4KB], 65536KB chunk
md9 : active raid1 sdc1[24] sdd1[0] sda1[3] sdb1[2]
530048 blocks super 1.0 [24/4] [UUUU____________________]
bitmap: 1/1 pages [4KB], 65536KB chunk
# mount | grep md
/dev/md9 on /mnt/HDA_ROOT type ext3 (rw,data=ordered)
/dev/md13 on /mnt/ext type ext3 (rw,data=ordered)
# for n in 1 2 9 13 256; do mdadm --detail /dev/md$n; echo ''; done
/dev/md1:
Version : 1.0
Creation Time : Tue Mar 22 23:35:47 2016
Raid Level : raid1
Array Size : 966807616 (922.02 GiB 990.01 GB)
Used Dev Size : 966807616 (922.02 GiB 990.01 GB)
Raid Devices : 1
Total Devices : 1
Persistence : Superblock is persistent
Update Time : Fri Apr 8 22:47:00 2016
State : clean
Active Devices : 1
Working Devices : 1
Failed Devices : 0
Spare Devices : 0
Name : 1
UUID : e0e6785f:3ef7a9e8:85a64565:d62167c0
Events : 4
Number Major Minor RaidDevice State
0 8 51 0 active sync /dev/sdd3
/dev/md2:
Version : 1.0
Creation Time : Thu Mar 24 20:47:59 2016
Raid Level : raid5
Array Size : 11701135232 (11159.07 GiB 11981.96 GB)
Used Dev Size : 5850567616 (5579.54 GiB 5990.98 GB)
Raid Devices : 3
Total Devices : 3
Persistence : Superblock is persistent
Update Time : Fri Apr 8 22:28:21 2016
State : clean
Active Devices : 3
Working Devices : 3
Failed Devices : 0
Spare Devices : 0
Layout : left-symmetric
Chunk Size : 64K
Name : 2
UUID : 41660e5e:53d54f9b:c5af0bf8:59a167ce
Events : 12528
Number Major Minor RaidDevice State
0 8 19 0 active sync /dev/sdb3
1 8 3 1 active sync /dev/sda3
2 8 35 2 active sync /dev/sdc3
/dev/md9:
Version : 1.0
Creation Time : Tue Mar 22 19:25:55 2016
Raid Level : raid1
Array Size : 530048 (517.71 MiB 542.77 MB)
Used Dev Size : 530048 (517.71 MiB 542.77 MB)
Raid Devices : 24
Total Devices : 4
Persistence : Superblock is persistent
Intent Bitmap : Internal
Update Time : Fri Apr 8 22:44:37 2016
State : active, degraded
Active Devices : 4
Working Devices : 4
Failed Devices : 0
Spare Devices : 0
Name : 9
UUID : 971e961f:b07ad03e:3e8c6160:be7e2069
Events : 11549
Number Major Minor RaidDevice State
0 8 49 0 active sync /dev/sdd1
24 8 33 1 active sync /dev/sdc1
2 8 17 2 active sync /dev/sdb1
3 8 1 3 active sync /dev/sda1
8 0 0 8 removed
10 0 0 10 removed
12 0 0 12 removed
14 0 0 14 removed
16 0 0 16 removed
18 0 0 18 removed
20 0 0 20 removed
22 0 0 22 removed
24 0 0 24 removed
26 0 0 26 removed
28 0 0 28 removed
30 0 0 30 removed
32 0 0 32 removed
34 0 0 34 removed
36 0 0 36 removed
38 0 0 38 removed
40 0 0 40 removed
42 0 0 42 removed
44 0 0 44 removed
46 0 0 46 removed
/dev/md13:
Version : 1.0
Creation Time : Tue Mar 22 19:26:03 2016
Raid Level : raid1
Array Size : 458880 (448.20 MiB 469.89 MB)
Used Dev Size : 458880 (448.20 MiB 469.89 MB)
Raid Devices : 24
Total Devices : 4
Persistence : Superblock is persistent
Intent Bitmap : Internal
Update Time : Fri Apr 8 22:20:53 2016
State : active, degraded
Active Devices : 4
Working Devices : 4
Failed Devices : 0
Spare Devices : 0
Name : 13
UUID : cf861591:1f054d49:d23bfa99:2eba3539
Events : 1837
Number Major Minor RaidDevice State
0 8 52 0 active sync /dev/sdd4
24 8 36 1 active sync /dev/sdc4
2 8 20 2 active sync /dev/sdb4
3 8 4 3 active sync /dev/sda4
8 0 0 8 removed
10 0 0 10 removed
12 0 0 12 removed
14 0 0 14 removed
16 0 0 16 removed
18 0 0 18 removed
20 0 0 20 removed
22 0 0 22 removed
24 0 0 24 removed
26 0 0 26 removed
28 0 0 28 removed
30 0 0 30 removed
32 0 0 32 removed
34 0 0 34 removed
36 0 0 36 removed
38 0 0 38 removed
40 0 0 40 removed
42 0 0 42 removed
44 0 0 44 removed
46 0 0 46 removed
/dev/md256:
Version : 1.0
Creation Time : Mon Apr 4 23:12:39 2016
Raid Level : raid1
Array Size : 530112 (517.77 MiB 542.83 MB)
Used Dev Size : 530112 (517.77 MiB 542.83 MB)
Raid Devices : 2
Total Devices : 4
Persistence : Superblock is persistent
Intent Bitmap : Internal
Update Time : Tue Apr 5 00:25:15 2016
State : active
Active Devices : 2
Working Devices : 4
Failed Devices : 0
Spare Devices : 2
Name : 256
UUID : ada991cf:ead39d2a:cbe94fef:b8ba1166
Events : 26
Number Major Minor RaidDevice State
0 8 50 0 active sync /dev/sdd2
1 8 18 1 active sync /dev/sdb2
2 8 2 - spare /dev/sda2
3 8 34 - spare /dev/sdc2
On top of it comes the Logical Volume Manager (LVM)
# pvdisplay
--- Physical volume ---
PV Name /dev/drbd2
VG Name vg2
PV Size 10.90 TiB / not usable 1.84 MiB
Allocatable yes (but full)
PE Size 4.00 MiB
Total PE 2856721
Free PE 0
Allocated PE 2856721
PV UUID lk5SJm-zi02-NNUR-jDij-62d4-1gvf-1XF1ot
--- Physical volume ---
PV Name /dev/drbd1
VG Name vg1
PV Size 922.02 GiB / not usable 3.53 MiB
Allocatable yes (but full)
PE Size 4.00 MiB
Total PE 236036
Free PE 0
Allocated PE 236036
PV UUID 3yOXXb-WBTJ-rUDO-0UCb-ZY3t-o4YI-GkOA9L
Finally, I was concerned by Virtualization. QTS uses KVM/qemu. Not that weird :)
# lsmod | grep kvm
kvm_intel 125044 4 - Live 0xffffffffa05d8000
kvm 263729 1 kvm_intel, Live 0xffffffffa0583000
# ps -aef | grep KVM
779 admin 2111076 S /KVM/opt/bin/qemu-system-x86_64 -name Windows -S -machine pc-1.3,accel=kvm,usb=off -m 2048 -realtime mlo
23422 admin 36116 S python /KVM/opt/htdocs/webvirtmgr/lib/TaskDaemon.py
23442 admin 7456 S /KVM/opt/sbin/libvirtd -d -l
23560 admin 27184 S /KVM/opt/bin/python /KVM/opt/htdocs/webvirtmgr/vm/vm_watcher start
23611 admin 3568 S /KVM/opt/bin/httpd -k start
23615 httpdusr 2012 S /KVM/opt/bin/httpd -k start
23616 httpdusr 55544 S /KVM/opt/bin/httpd -k start
23806 admin 30956 S /KVM/opt/bin/python /KVM/opt/htdocs/webvirtmgr/task/daemon start
23809 admin 29440 S /KVM/opt/bin/python /KVM/opt/htdocs/webvirtmgr/task/daemon start
23819 admin 34220 S python /KVM/opt/htdocs/webvirtmgr/noVNC/utils/websockify.py --cert=/KVM/opt/conf/server.crt --target-conf
24040 admin 7652 S python /KVM/opt/htdocs/webvirtmgr/lib/pyinotify.py -e IN_CLOSE_WRITE -c /tmp/qvminotify.sh /tmp/qvminotif
25962 httpdusr 6312 S /KVM/opt/bin/httpd -k start
