Build an USB Powered Fan
432 words, 3 minutes
I’m keeping an eye on the temperature of my Dell Inspiron Mini 1012. And since it is powered-on again, according to Munin and the cpu0_temp0 / cpu1_temp0 counters, it runs at an average temperature of 59°C. This is quite a bit hot ; especially when I now it is supposed to have a TDP of 5.5 W and that the XPS M1330 is about 45°C.
The Mini is fanless! This is why I bought it and also probably the reason why it is that hot stored in a shoes cupboard with no air flow. So, I’m gonna give him some air turning an unused internal PC Fan into a brand new USB Powered Fan.
I could have bought an USB Fan, like the ARCTIC Breeze Mobile. It is really cheap and can even be powered from sun-light. But I want my fan now! And re-using old hardware is good for the Planet :p
I have an “old” Antec Performance One P180 lying near the front door and doing nothing except hosting dust and shoes I take off when coming home. That case was bought because it was supposed to be hyper-silent and super-cooling ; in fact, it was, but it’s pretty big and the processor/memory/disks inside were rather old. Anyway, what’s really cool is that it ships with big fans inside. Especially in its back, I could find an Antec TriCool 120mm with a speed selector. I only need some USB adapter and I can manage the USB Fan.
So here we go:
- Grab an unused USB cable ; I took a USB “A” Plug to USB Mini “B” Plug ;
- Cut off the cable at about 5 cm of the “A” part (the biggest) ;

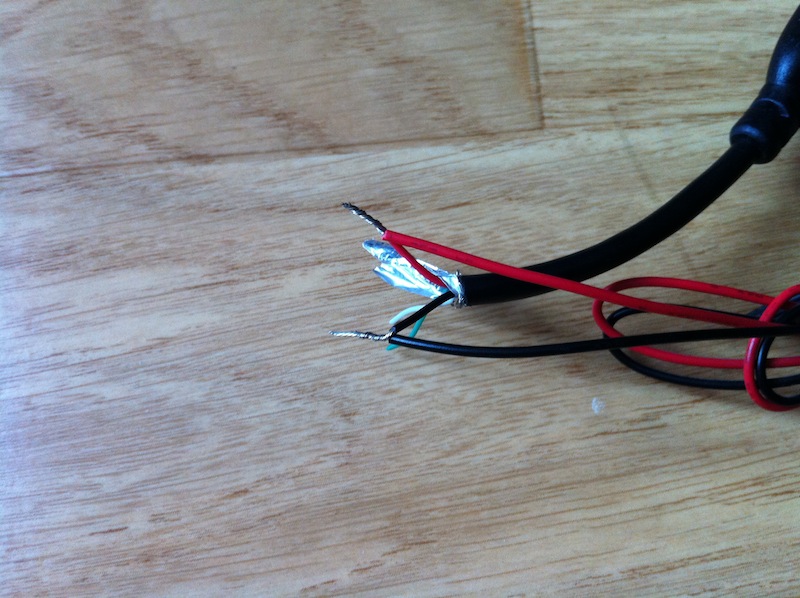

- Cut everything except the Black and the Red wires ;
- Grab an unused FAN ;
- Cut off the cable close to the plug side ;

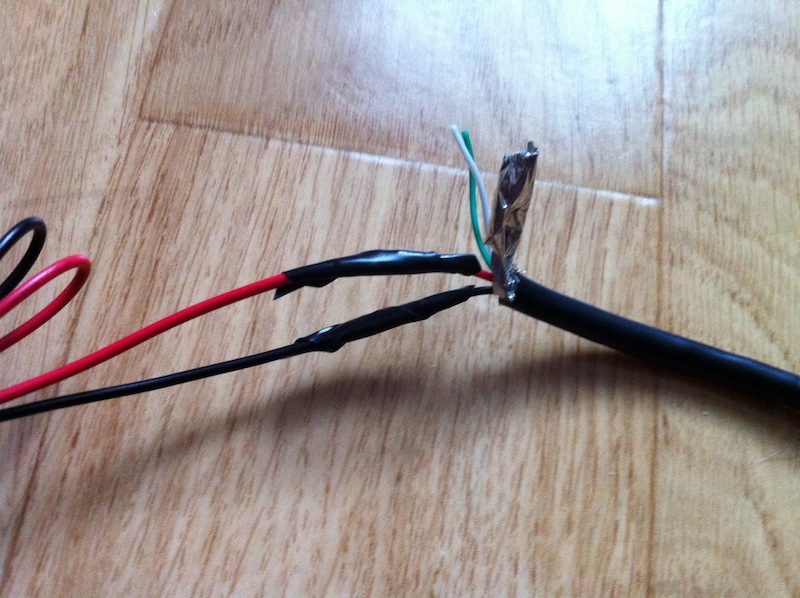

- Strip the wires and put them together: the black wires together and the red one with the other red one ;
- Put some electric tape around them to ensure none ever touch each other ;
- Test the fan plugging it in a USB port.

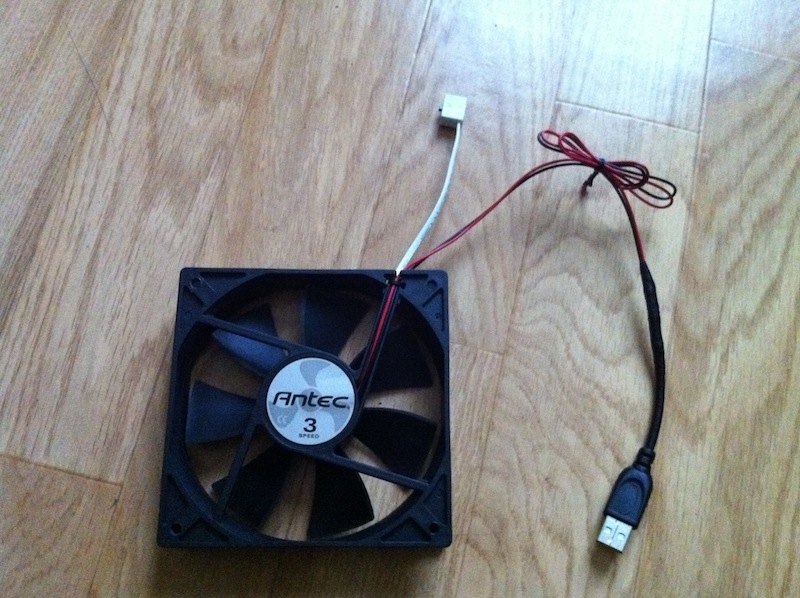

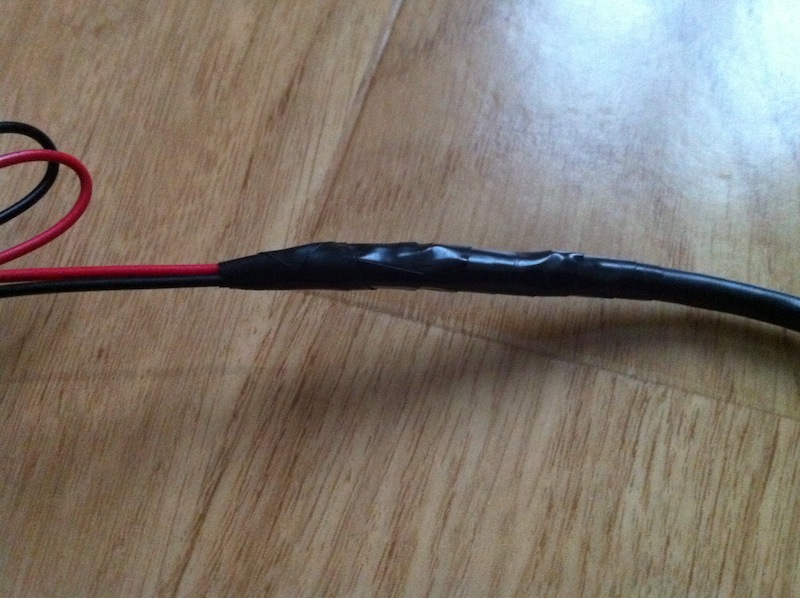

If it works, and it did with mine, put some more electric tape around the whole cable to have a clean gadget.

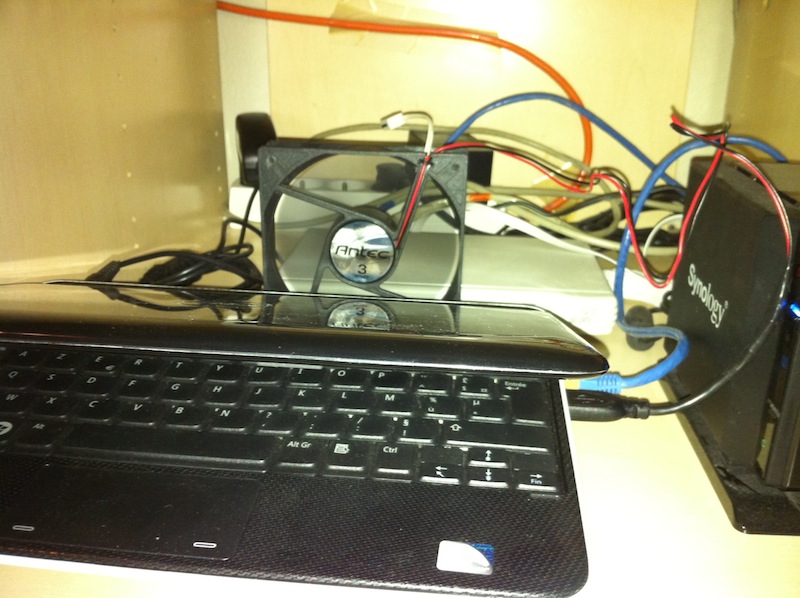

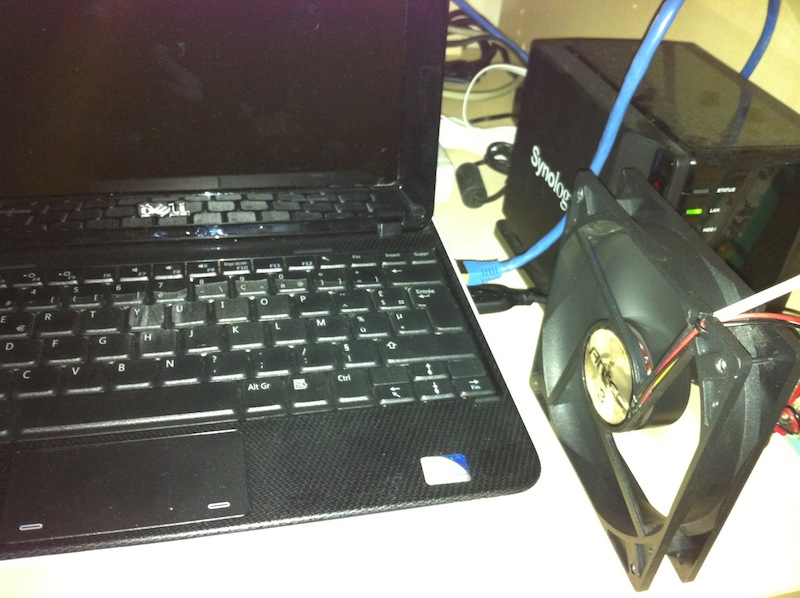

Here are some pics I took during the making process and at the installation phase:
The initial directions were bought from metacafe. You can see the full video here
In less than an hour of time, the temperature went down to 56°C. I’ll update this tomorrow to note how far down it goes.
Happy cooling!
